These PdF scans were provided by Gerry Bissi. They are the same illustrations found in the Ford Dealer Parts Catalog.

These original Ford Motor Company parts illustrations show the base part number of the component, leaving out the prefix and suffix. As an example, the Battery Control Module is shown as “10B687” without the prefix XL5Z  and the suffix AA.

These illustrations are provided as part of REVolt’s effort to support the preservation of the Ford Ranger EV. They are the property of the Ford Motor Company, the original copyright holder.

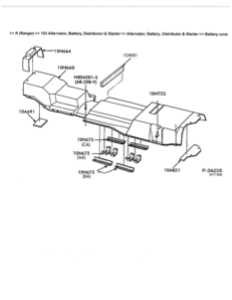

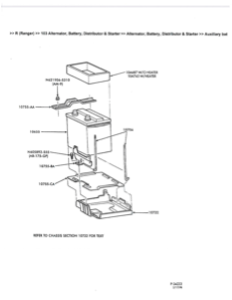

The thumbnail images below link to PDF documents. Adobe Reader on PC or Preview on Mac allow you to open, enlarge and print PDF documents.
