Power Control Stations

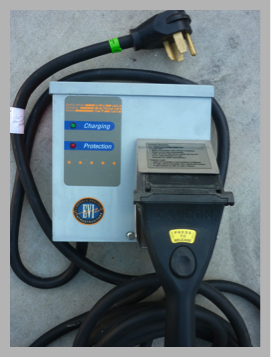

These are popular PCS because they’re compact and can be carried around with you to be used in an emergency. This example is set up for portable use with a plug that can be connected to a standard electric cloths dryer outlet.
DS50
When it’s time for a “fill-up”, the Power Control Station (PCS) is your link to 220v A/C power to recharge your traction battery.
Not recommended for NiMH Ranger EVs because it lacks the ability to restart the charging process when the Ranger EV control system interrupts the charging process to prevent thermal runaway. While this PCS can be used successfully on PbA trucks, other units are preferred for NiMH.
Avcon EV Power Pak

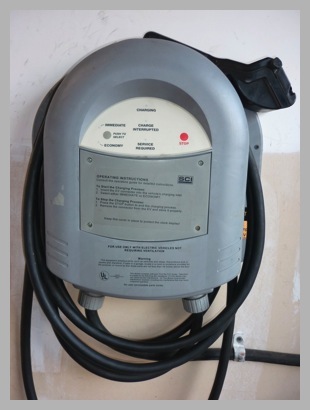

The SCI PCS was supplied to Ranger EV dealers as part of their Ranger EV Service tools. Some have timers that allow for automated start of charging. These are the PCS units that are described and shown in the Ranger EV Student Guide training material and Workshop Manual.
SCI

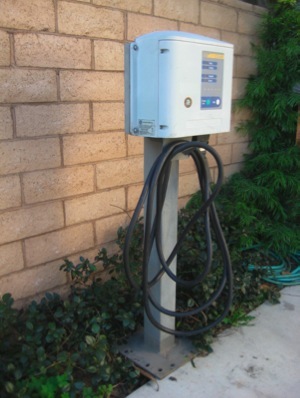

Designed for more commercial applications, the ICS 200 is what you’ll find at parking lots, malls, and other commercial sites. It was supplied by Electric Vehicle Infastructure (EVI) that is no longer in business.
ICS 200
This adapter allows Ranger EVs with stock AVCON grill mounted connection to connect and charge using the J1772 standard connection. A special subsidized price is available if you supply a California-registered VIN number with your order. One adapter per vehicle.
J1772 Adapter for Ranger EV
